Princeton Carbonworks

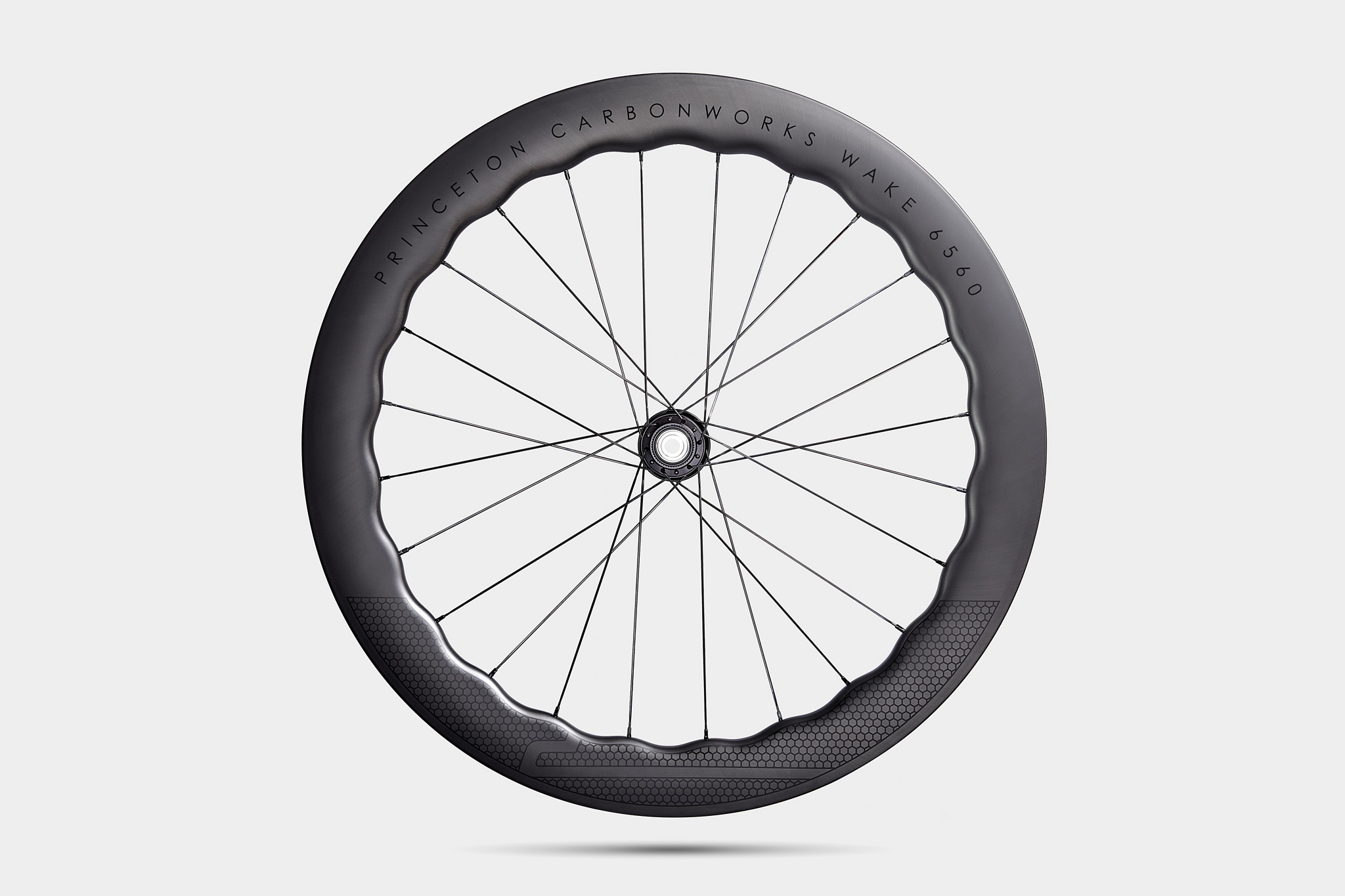

WAKE 6560

The Wake 6560 wheels from Princeton Carbonworks feature an optimized, mechanical design. The combination with advanced manufacturing ensures good stress distribution and lower weight at the markup. Starting in 2022, you can choose two different width options.

These are the standard width for 23-25mm tires, called Wake 6560 Corsa, and a new width optimized for 25mm+ tires, called Wake 6560 Strada. The Wake 6560 Corsa have an internal width of 18.5mm and an external width of 26.5mm. The weight of the rims is 480 grams which makes these wheels well suited for flat rides on asphalt where the speed is high. The Wake 6560 Strada have an internal width of 20.5mm and an external width of 28mm. With a rim weight of 480 grams, these wheels are perfect for flat rides with the occasional gravel or cobblestone section in between.

Specifications
Type of spokes: Sapim CX-Ray
Hub Type: White Industries, TUNE, CK R45D Ceramic, DT Swiss 180EXP, Carbon Ti, Industry9, Tactic Racing
Freehub Body: Shimano, SRAM XDR, Campagnolo
Type of tire: Tubeless
Brake type: Disc, Rim
Weight rim (disc brake): 490 grams
Weight wheelset (disc brake): 1543 grams

PEAK 4550

Princeton Carbonworks has developed the brand new PEAK 4550 in collaboration with the best cyclists in the world. PEAK 4550 is an ultra lightweight, stiffer, stronger and more aerodynamic solution aimed directly at the UCI World Tour and Grand Tour races. The wheels are available in all configurations. The main priorities during development were to create an all-round race-ready wheel with exceptional aerodynamic properties and the power to transfer high wattages to the ground!

The Peak 4550 wheels have an internal width of 18.5mm and an external width of 26.5mm. The Tubular rim brake has a weight of 1071 grams, the Rim brake clincher of 1297 grams and the Disc brake clincher of 1348 grams. The wheels are made for hills and climbs with asphalt. The wheel has a rim depth of about 45-50mm. Ideal for road riding and racing with relatively narrow tires.

Specifications

Type spokes: Sapim CX-Ray
Hub Type: White Industries, TUNE, Carbon Ti, Industry Nine, Chris King R45D
Ceramic, DT Swiss 180EXP, Tactic Racing TR01
Freehub Body: Shimano, SRAM XDR, Campagnolo
Type tire: Tubeless, Tubular, Clincher
Type brake: Disc, rim
Weight wheelset (disc brake): 1348 gram

GRIT 4540

Grit 4540, the newest member of the Princeton Carbonworks family, is designed from the ground up to exceed your expectations. Lightweight? Check. Amazing stiffness? Check. Versatile, fast and stable? Check! These wheels are ideal for climbing, gravel or normal roads. GRIT has been launched with a sinusoidal cross-section with variable depth for unmatched crosswind stability. In addition, a slightly varying width in the profile has also been introduced and the carbon lay-up has been optimized with an emphasis on areas of high stress. Try it now!

This wheelset has an internal width of 21mm and an external width of 30mm. The rim brake has a weight of 430 grams and the disc brake has a weight of 415 grams. Grit 4540 is specially designed as a lightweight wheelset that you can use on any terrain on your road bike and gravel bike.

Specifications
Type of spokes: Sapim CX-Ray
Hub Type: White Industries, TUNE, Industry Nine, Carbon Ti, CK R45D Ceramic, DT Swiss 180EXP, Tactic Racing
Freehub Body: Shimano, SRAM XDR, Campagnolo
Type of tire: Tubeless, Clincher
Brake type: Disc, Rim
Weight rim (disc brake): 415 grams
Weight wheelset (disc brake): 1530 grams

BLUR 633

The wait is over! The Princeton Carbonworks BLUR 633 is now available as a single rear pressure rim. An ultra rigid rim with a holeless tire bed and completely open construction.

The BLUR 633 wheels are specifically designed for pure speed in time trial. This wheel is applied as a single aerodisc rear. It is one of the fastest disc wheels on the market. Filippo Ganna became world champion in Imola in 2021 with Princeton CarbonWorks wheels. Behind he rode a BLUR 633 and his front wheel was a WAKE 6560.

Specifications
Type of spokes: Sapim CX-Ray
Hub type: TUNE, White Industries, Tactic Racing
Freehub Body: Shimano, SRAM XDR, Campagnolo
Tire type: Tubeless, Clincher
Brake type: Disc, Rim

MACH 7580

Deeper. Faster. Perfectly suited for time trials, triathlons or road races. The new Mach 7580 wheels are designed to be even faster, while maintaining PWC's signature handling and responsiveness. The wheels weigh less than 1500 grams and have an average depth of 77.5mm. In fact, the Mach 7580 wheels already have a UCI gold medal, an Olympic bronze medal and several Ironman victories to their name!

The wheels have an internal width of 18.5mm and an external width of 26.5mm. With a rim weight of 525 grams, these wheels are specifically designed for triathlon and time trial (in combination with a Blur 633 rear wheel). This wheelset was developed in collaboration with Team Ineos.

Specifications
Type of spokes: Sapim CX-Ray
Hub Type: White Industries, TUNE, Carbon Ti, Industry Nine, Chris King R45D
Ceramic, DT Swiss 180EXP, Tactic Racing TR01
Freehub Body: Shimano, SRAM XDR, Campagnolo
Type tire: Tubeless, Tubular, Clincher
Type brake: Schijf, velg
Weight rim (disc brake): 520 grams
Weight wheelset (disc brake): 1495 grams

DUAL 5550

The Dual 5550 ushers in a new era for Princeton CarbonWorks with a dedicated all-road wheel set designed around wider tires for life on and off pavement. The goal wit this wheel set was to create a light and strong rim that was aerodynamically optimised around 30 to 32mm tires. With an inner width of 22mm, the Dual 5550 has a tubeless-ready hooked rim offering riders the greatest flexibility in tire choice and tire pressure.Developed in collaboration with Ineos for Paris-Roubaix 2021. In the end, a light and strong rim was created that ranges in depth from 50 to 55 mm.

This newest wheel set is developed for cobblestone riding or gravel rides on road and gravel bikes. It is a true all-round wheel set!

Specifications
Type of spokes: Sapim CX-Ray
Hub type: White Industries, TUNE, Carbon Ti, Industry Nine, Chris King R45D Ceramic, DT Swiss 180EXP, Tactic Racing TR01
Freehub Body: Shimano, SRAM XDR, Campagnolo
Tire type: Tubeless, Tubular, Clincher
Brake type: Disc, Rim
Weight rim (disc brake): 500 grams
Weight wheelset (disc brake): 1440 grams
